Thavayil SmartHome 4CH WiFi Controller | Model THV-4CH | 4 Channel Smart Switch | 10A per Channel 40A Max | WiFi 2.4GHz | Manual Switch Support S1-S4 | Alexa Google Home Voice Control

₹960

About this item:

4 Independent Channels (CH1-CH4): Control 4 electrical loads (lights, fans, appliances) individually - ON/OFF from anywhere. 10A per channel, Total max 40A, 220-240V AC only.
Triple Control - App + Voice + Manual: Control via Thavayil SmartHome App at app.thavayil.com, voice commands "Turn on Load 1" via Alexa / Google Home, and retain existing manual wall switches S1-S4 for local control.
Easy App Setup with Google Login: Go to app.thavayil.com → Login with Google ID (Secure Google Sign-In) → Click + Add Device → Enter 10-digit Device ID from back side sticker (e.g., 1000000001) → Start controlling. No extra hub needed.

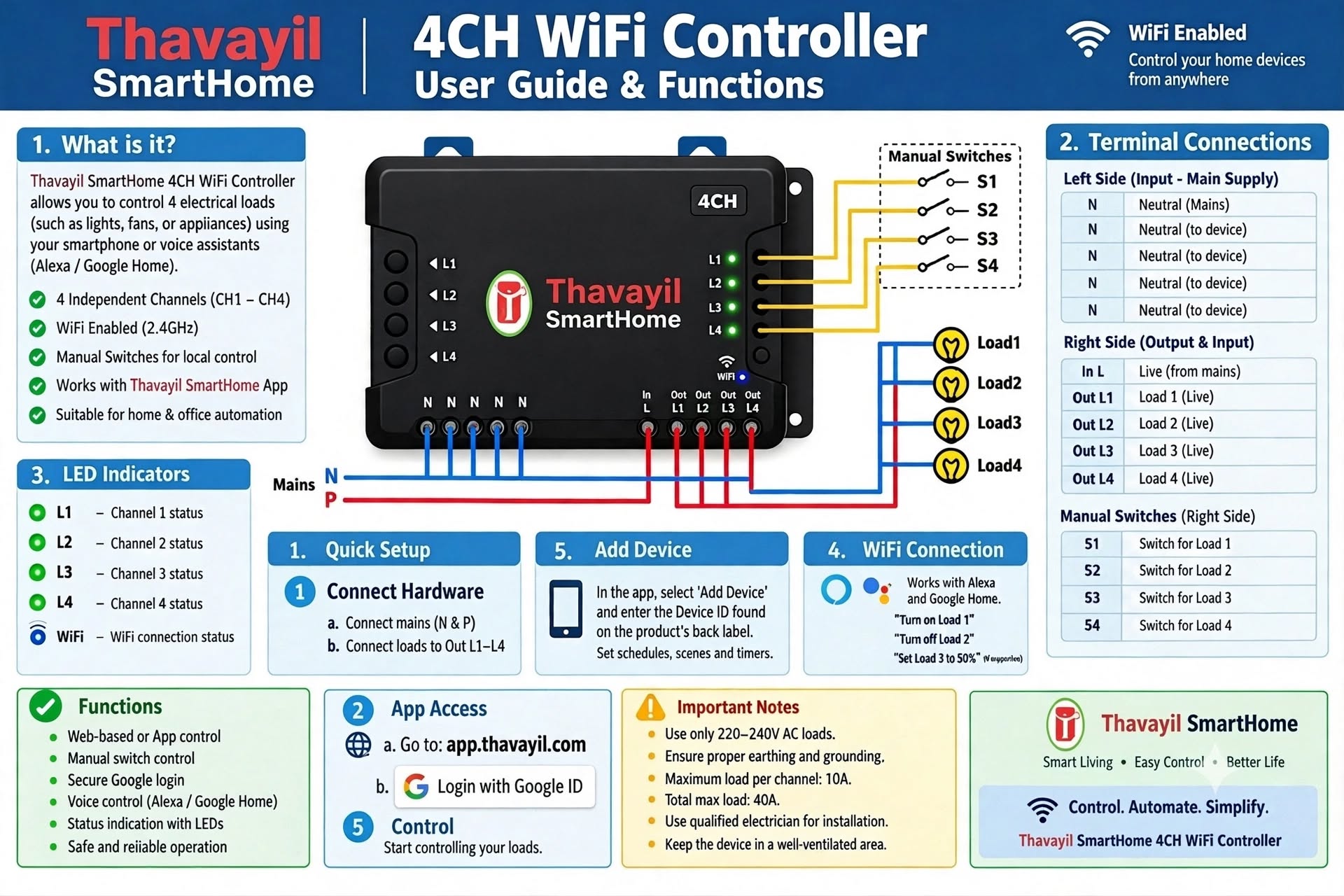

Correct Professional Wiring: Left Side 5× N - First N = Neutral Mains, Other 4× N = Neutral to device. Right Side In L = Live from mains, Out L1-L4 = Live to Load 1-4. Manual Switches S1-S4 (Yellow wire) + Load wiring Blue Neutral + Red Live. LED indicators L1-L4 + WiFi status.

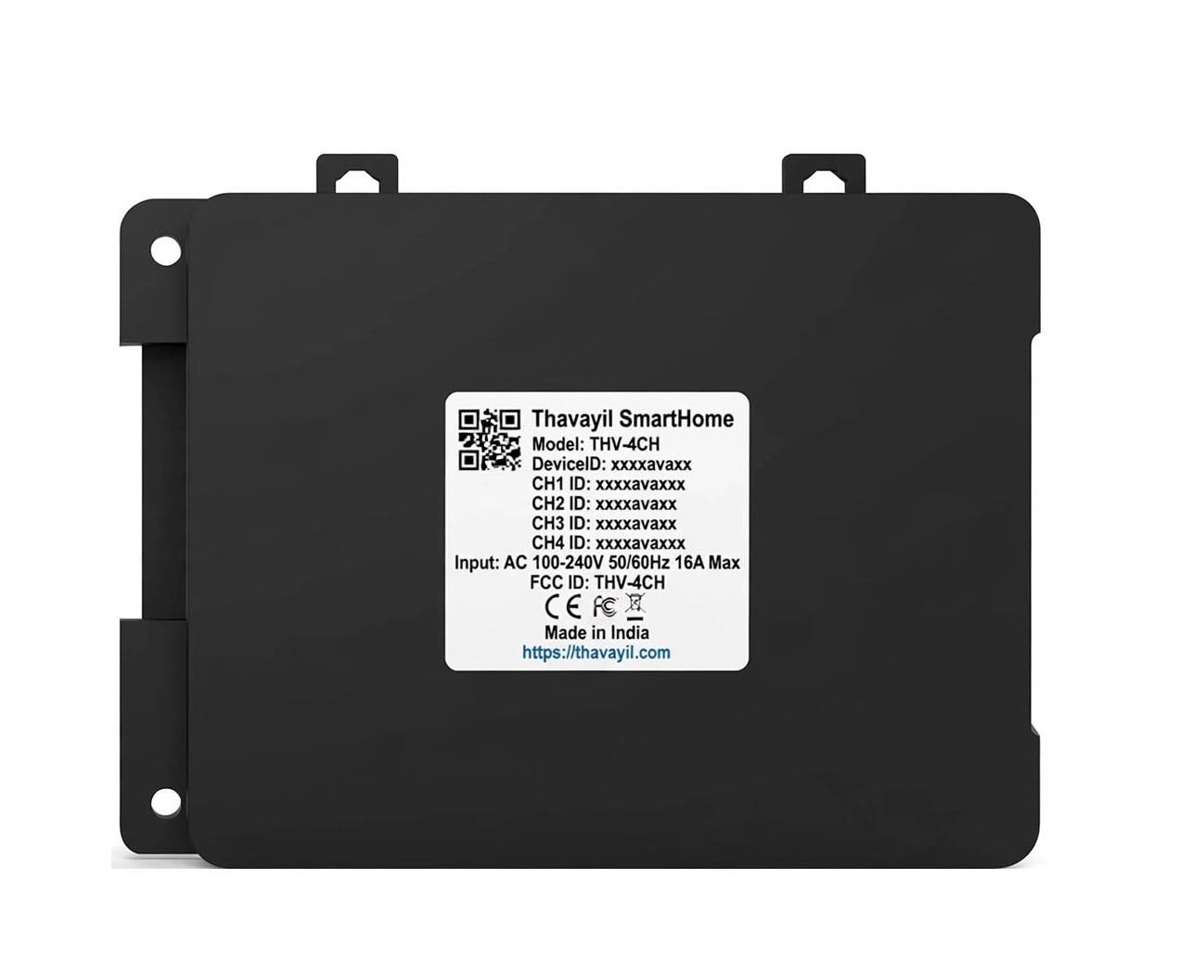

Made in India & Safe: Input AC 100-240V 50/60Hz 16A Max, CE FC certified, Input protections. Use qualified electrician, proper earthing, keep in well-ventilated area. Device ID: xxxxvaxx, CH1 ID: xxxxavxxx etc. printed on back white label with QR.
Smart Features: Set schedules, scenes, timers, control from anywhere, status indication with LEDs, safe and reliable operation for home & office automation. Works on 2.4GHz WiFi.
Package Contents: 1× THV-4CH Controller, User Guide (Wiring Diagram + App Setup), Screws. Support: thavayilckm@gmail.com / 8086200060 - Thavayil Electronics, Bus Stand Building, Changaramkulam.
